Porsche Transmission Mount - Manual
Models This Product Fits
- 996 Porsche Carrara - C4 – CS Produced 1999-2005
Note: Use in conjunction with the AGA Porsche Transmission Tool to easily remove and replace the transmission mount with the transmission in the car.
Remove plastic under panels. Support transmission with screw jack or regular jack.
Then remove bolts and take down the bracket.
Pull upper mount off of the studs, rotate mount and leave on top of the transmission.
Remove both urethane side washers (You will need those later)
To remove mount, insert AGA-RIM-996-997 Removal Installation Mandrel over
the mount. On the passenger side (R side). Note: There is a machine notch that
matches the notch in transmission casing. Insert compression rods into the mount
and push them into slot in Removal Mandrel.
Note: Machine notch in cylinder. Place it up against transmission housing to

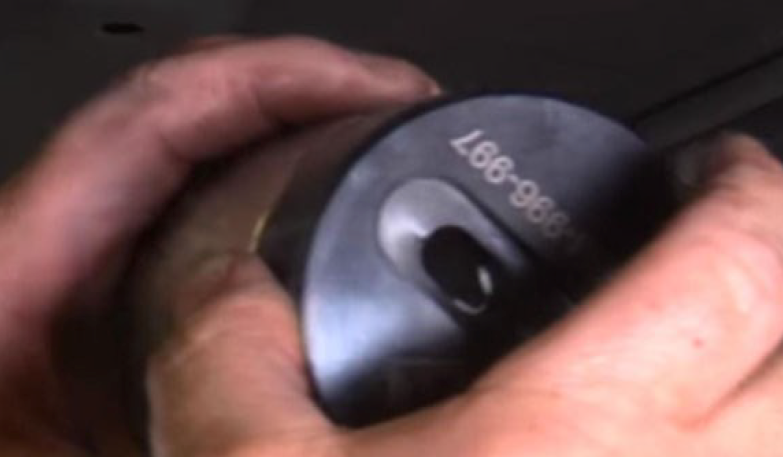

provide clearance. On the Driver side (L side). Then install the Cylinder Cap
AGA-CC-996-997 and apply anti-seize or grease to the threaded rods and
face of washers. While tightening by hand, make sure the cylinder is properly
located, with the notch toward the transmission.
Make sure the Removal Mandrel is properly located into the mount and fully seated.
Cut out any excess rubber to allow the Removal Mandrel to perfectly seat in mount.
Please note: If the mount is not properly seated, it could damage the mount and
make it difficult to come out.Some failed mounts will have rubber sticking out;
this must be removed before Removal Mandrel can be fully seated.
Once the removal tool is installed, tighten nuts by hand and ensure proper alignment,
start ratcheting both nuts to get good tension. Continue to switch off between the upper
and lower rod, until mount is fully removed and into the cylinder.
Before installing mount, ensure that the hole in transmission is clean.
Apply a thin layer of grease to the inside edge (Doing this from the
driver’s side of the transmission)
To install new mount, make sure flat side is facing up.
