Mercedes-Benz V6 intake manifold gasket
Models This Product Fits
- V6 M272
- V8 M273

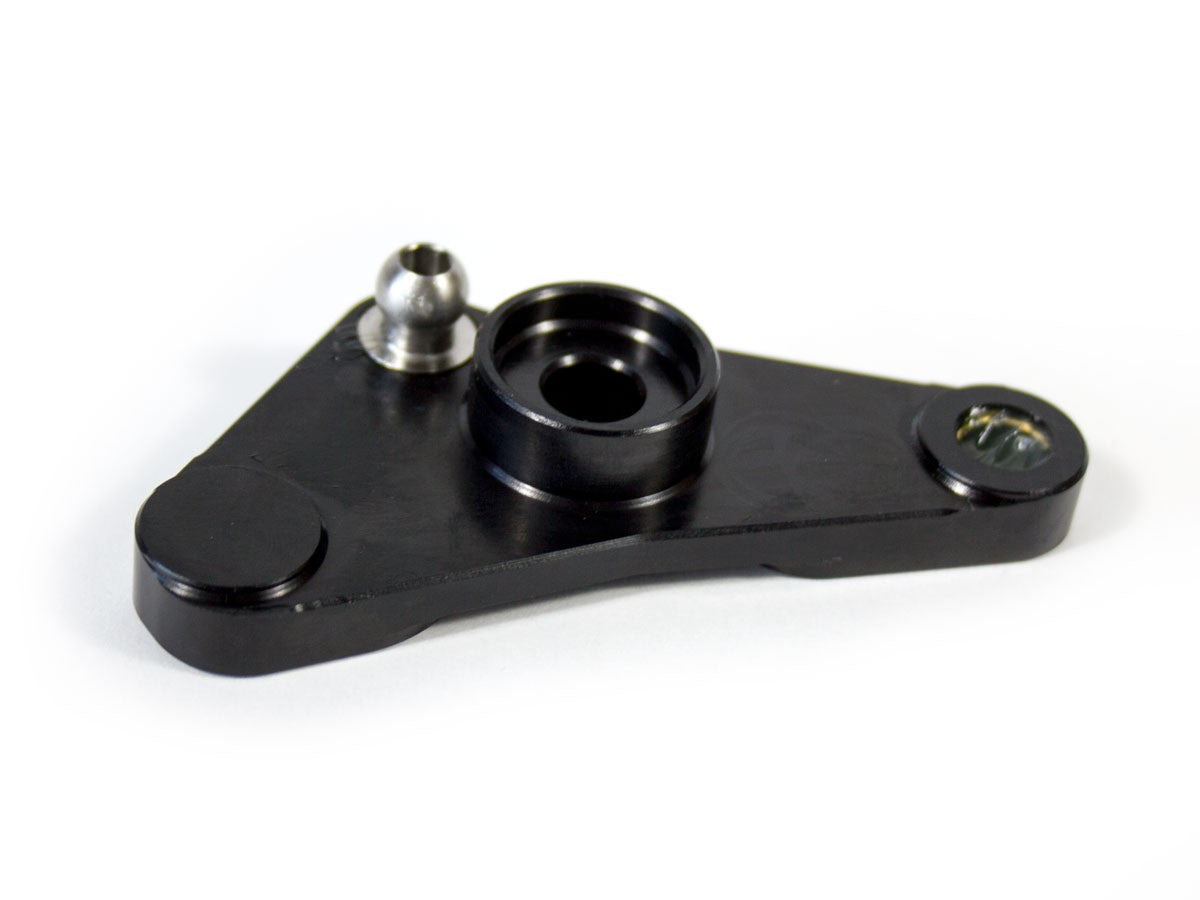

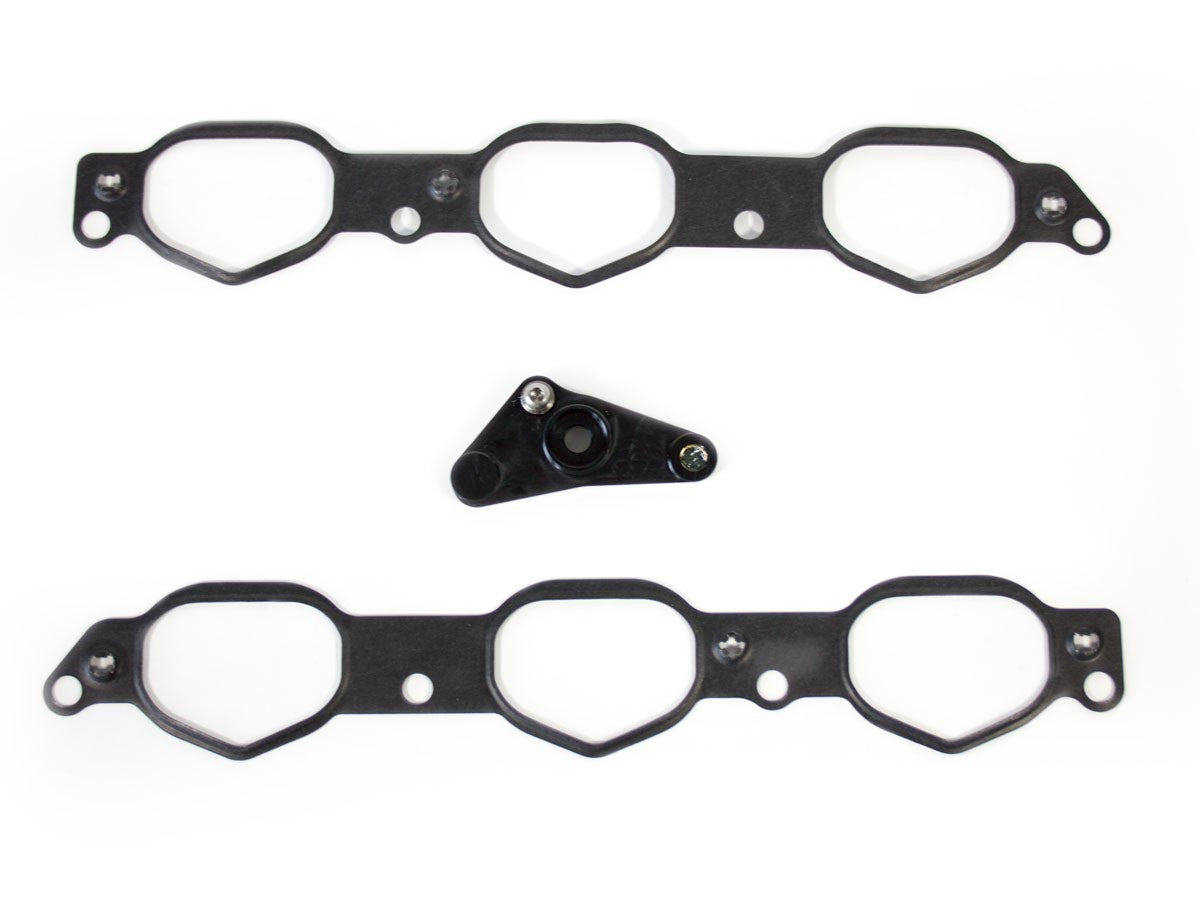

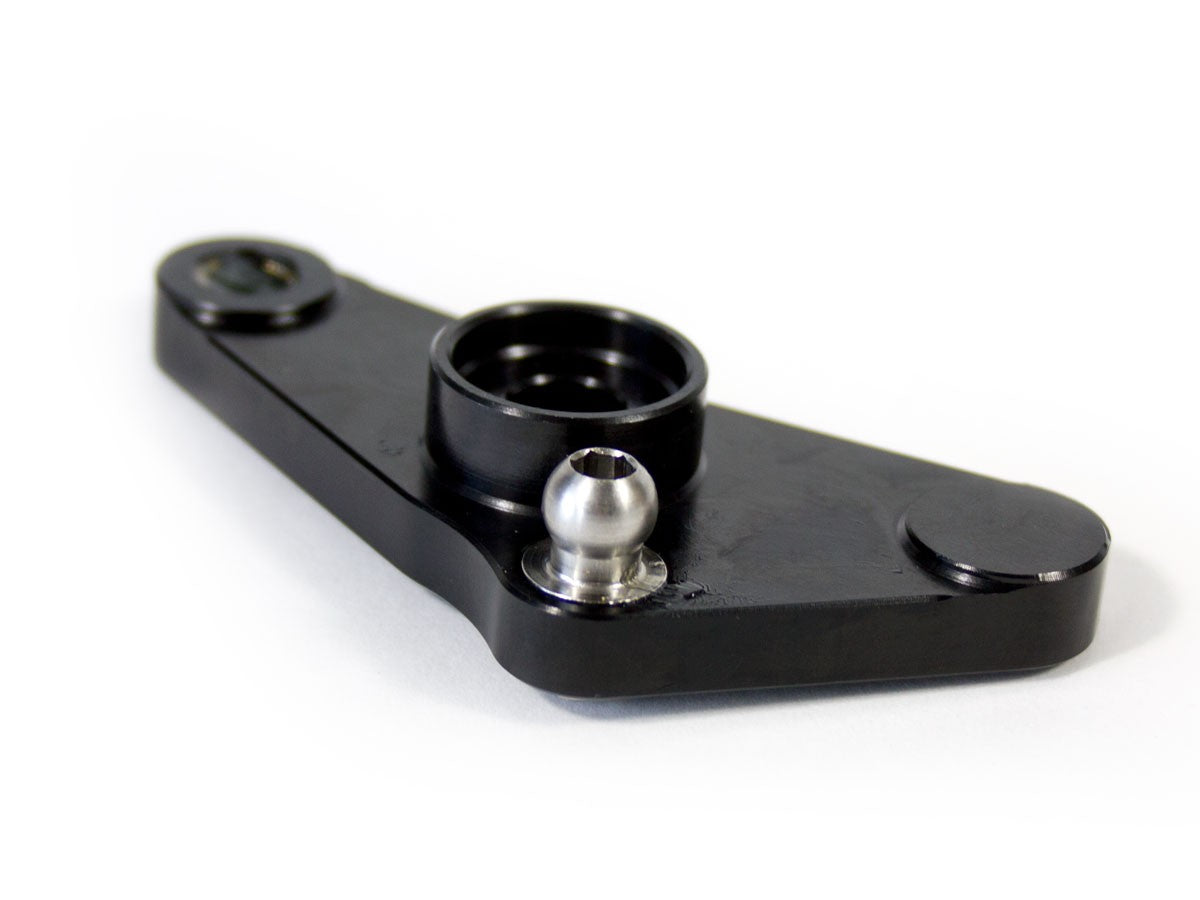

|Description||Mercedes Benz Throttle Lever|
|Description||Left Intake Mainfold Gasket|
|Description||Right Intake Mainfold Gasket|
These instructions are for experienced technicians only. This job should only be done by an experienced technician.
Remove Intake Manifold. Refer to Mercedes Benz Procedures.
Carefully disconnect the left & right side metal lever. Remove broken ball from plastic actuator rod. Remove center bolt (torque #30).
STEP 3: Installing New AGA Throttle Lever:
Install left & right side metal lever. Do not use excessive force. If the ball does not snap in easy, center spring clip then apply pressure and ball will click in. Install center bolt (torque to 80in lbs./ 9nm) with Loctite on threads only.
Check that lever moves freely and that lever does not interfere with stud. *If stud does interfere with lever, trim stud slightly until it clears. DO NOT REMOVE the stud all the way since it retains the wires.* Install actuator plastic rod on ball. Replace intake manifold gaskets. Install manifold according to Mercedes Benz procedure and torque valves. Clear codes in system.
What is the average repair time?
Using our parts, the Mercedes-Benz Manifold Lever installation repair takes approximately 4-5 Hours to complete.
